Broadwall Directional Coupler - Dual-arm 4 WG Ports
Vector Telecom manufactures a standard product line of multi-hole broadwall directional couplers covering a wide frequency range. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm. Directional couplers are typically used for power sampling, frequency monitoring, especially in the test setups where power reflection measurements are required. Additional sizes and special configurations are available on request.
Broadwall Directional Coupler - Dual-arm 4 WG Ports
Broadwall Directional Coupler - Dual-arm 4 WG Ports
Download Broadwall Directional Coupler - Dual-arm 4 WG Ports Catalogue »
Broadwall Directional Coupler - Dual-arm 4 WG Ports Product Range
 MODEL NO  FREQ RANGE  VSWR  COUPLING***  DIRECTIVITY  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL  PDF Datasheet
  (GHz) Max (dB) (dB) Min
VT9WDXCXPPPPA 0.75-1.15 1.1(Main),1.25(Sec) 3~60 30~40 R9/WR975 FDP/FDM Al
VT12WDXCXPPPPA 0.96-1.46 1.1(Main),1.25(Sec) 3~60 30~40 R12/WR770 FDP/FDM Al
VT14WDXCXPPPPA 1.13-1.73 1.1(Main),1.25(Sec) 3~60 30~40 R14/WR650 FDP/FDM Al
VT18WDXCXPPPPA 1.45-2.20 1.1(Main),1.25(Sec) 3~60 30~40 R18/WR510 FDP/FDM Al
VT22WDXCXPPPPA 1.72-2.61 1.1(Main),1.25(Sec) 3~60 30~40 R22/WR430 FDP/FDM Al
VT26WDXCXPPPPA 2.17-3.30 1.1(Main),1.25(Sec) 3~60 30~40 R26/WR340 FDP/FDM Al
VT32WDXCXPPPPA 2.60-3.95 1.1(Main),1.25(Sec) 3~60 30~40 R32/WR284 FDP/FDM Al
VT40WDXCXPPPPA 3.22-4.90 1.1(Main),1.25(Sec) 3~60 30~40 R40/WR229 FDP/FDM Al
VT48WDXCXPPPPA 3.94-5.99 1.1(Main),1.25(Sec) 3~60 30~40 R48/WR187 FDP/FDM Al
VT58WDXCXPPPPA 4.64-7.05 1.1(Main),1.25(Sec) 3~60 30~40 R58/WR159 FDP/FDM Al
VT70WDXCXPPPPA 5.38-8.17 1.1(Main),1.25(Sec) 3~60 30~40 R70/WR137 FDP/FDM Al
VT84WDXCXPPPPC 6.57-9.99 1.1(Main),1.25(Sec) 3~60 30~40 R84/WR112 FBP/FBM/FBE Cu
VT100WDXCXPPPPC 8.20-12.40 1.1(Main),1.25(Sec) 3~60 30~40 R100/WR90 FBP/FBM/FBE Cu
VT120WDXCXPPPPC 9.84-15.0 1.1(Main),1.25(Sec) 3~60 30~40 R120/WR75 FBP/FBM/FBE Cu
VT140WDXCXPPPPC 11.9-18.0 1.1(Main),1.25(Sec) 3~60 30~40 R140/WR62 FBP/FBM/FBE Cu
VT180WDXCXPPPPC 14.5-22.0 1.1(Main),1.25(Sec) 3~60 30~40 R180/WR51 FBP/FBM/FBE Cu
VT220WDXCXPPPPC 17.6-26.7 1.1(Main),1.5(Sec) 3~60 30~40 R220/WR42 FBP/FBM/FBE Cu
VT260WDXCXPPPPC 21.7-33.0 1.1(Main),1.5(Sec) 3~60 30~40 R260/WR34 FBP/FBM/FBE Cu
VT320WDXCXPPPPC 26.5-40.0 1.1(Main),1.5(Sec) 3~60 30~40 R320/WR28 FBP/FBM/FBE Cu

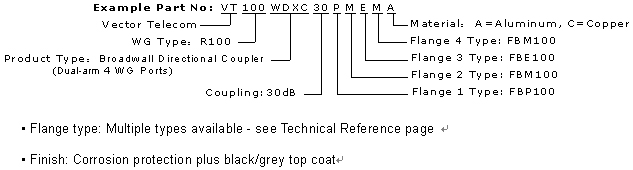

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** Nominal Accuracy: ?± 0.7dB, Frequency Sensitivity: ?± 1dB
[Ordering Information]
