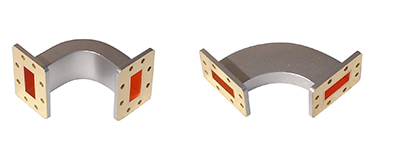

Waveguide Bend
Vector Telecom offers a standard product line of E-bends and H-bends covering waveguide sizes WR10 thru WR430. Multi-degrees, additional sizes, configurations and combinations are available on request.Waveguide Bend
Waveguide Bend
Download Waveguide Bend Catalogue »
Waveguide Bend Product Range
 MODEL NO  FREQ RANGE  VSWR  STD DIMENSIONS  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL
  (GHz) Max A*B*R (mm)***
VT9WTEB150X150PPA 0.75-1.15 1.15 150*150 R9/WR975 FDP/FDM Al
VT9WTHB250X250PPA 0.75-1.15 1.15 250*250 R9/WR975 FDP/FDM Al
VT12WTEB100X100PPA 0.96-1.46 1.15 100*100 R12/WR770 FDP/FDM Al
VT12WTHB200X200PPA 0.96-1.46 1.15 200*200 R12/WR770 FDP/FDM Al
VT14WTEB100X100PPA 1.13-1.73 1.15 100*100 R14/WR650 FDP/FDM Al
VT14WTHB180X180PPA 1.13-1.73 1.15 180*180 R14/WR650 FDP/FDM Al
VT18WTEB80X80PPA 1.45-2.20 1.15 80*80 R18/WR510 FDP/FDM Al
VT18WTHB150X150PPA 1.45-2.20 1.15 150*150 R18/WR510 FDP/FDM Al
VT22WEB190X190PPA 1.72-2.61 1.15 190*190*95 R22/WR430 FDP/FDM Al/Cu
VT22WHB250X250PPA 1.72-2.61 1.15 250*250*152 R22/WR430 FDP/FDM Al/Cu
VT26WEB100X100PPA 2.17-3.30 1.15 80*80*40 R26/WR340 FDP/FDM Al/Cu
VT26WHB180X180PPA 2.17-3.30 1.15 180*180*100 R26/WR340 FDP/FDM Al/Cu
VT32WEB100X100PPA 2.60-3.95 1.1 100*100*40 R32/WR284 FDP/FDM Al/Cu
VT32WHB160X160PPA 2.60-3.95 1.1 160*160*100 R32/WR284 FDP/FDM Al/Cu
VT40WEB80X80PPA 3.22-4.90 1.1 80*80*40 R40/WR229 FDP/FDM Al/Cu
VT40WHB120X120PPA 3.22-4.90 1.1 120*120*78 R40/WR229 FDP/FDM Al/Cu
VT48WEB80X80PPC 3.94-5.99 1.1 80*80*40 R48/WR187 FDP/FDM Al/Cu
VT48WHB80X80PPC 3.94-5.99 1.1 80*80*40 R48/WR187 FDP/FDM Al/Cu
VT58WEB80X80PPC 4.64-7.05 1.1 80*80*40 R58/WR159 FDP/FDM Al/Cu
VT58WHB80X80PPC 4.64-7.05 1.1 80*80*40 R58/WR159 FDP/FDM Al/Cu
VT70WEB60X60PPC 5.38-8.17 1.1 60*60*30 R70/WR137 FDP/FDM Al/Cu
VT70WHB80X80PPC 5.38-8.17 1.1 80*80*50 R70/WR137 FDP/FDM Al/Cu
VT84WEB50X50PPC 6.57-9.99 1.1 50*50*25 R84/WR112 FBP/FBM/FBE Al/Cu
VT84WHB60X60PPC 6.57-9.99 1.1 60*60*35 R84/WR112 FBP/FBM/FBE Al/Cu
VT100WEB40X40PPC 8.20-12.50 1.1 40*40*20 R100/WR90 FBP/FBM/FBE Al/Cu
VT100WHB55X55PPC 8.20-12.50 1.1 55*55*35 R100/WR90 FBP/FBM/FBE Al/Cu
VT120WEB40X40PPC 9.84-15.0 1.1 40*40*20 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHB45X45PPC 9.84-15.0 1.1 45*45*30 R120/WR75 FBP/FBM/FBE Al/Cu
VT140WEB40X40PPC 11.9-18.0 1.1 40*40*20 R140/WR62 FBP/FBM/FBE Al/Cu
VT140WHB40X40PPC 11.9-18.0 1.1 40*40*25 R140/WR62 FBP/FBM/FBE Al/Cu
VT180WEB30X30PPC 14.5-22.0 1.1 30*30*15 R180/WR51 FBP/FBM/FBE Al/Cu
VT180WHB35X35PPC 14.5-22.0 1.1 35*35*20 R180/WR51 FBP/FBM/FBE Al/Cu
VT220WEB30X30PPC 17.6-26.7 1.15 30*30*15 R220/WR42 FBP/FBM/FBE Al/Cu
VT220WHB35X35PPC 17.6-26.7 1.15 35*35*20 R220/WR42 FBP/FBM/FBE Al/Cu
VT260WEB30X30PPC 21.7-33.0 1.15 30*30*15 R260/WR34 FBP/FBM/FBE Al/Cu
VT260WHB35X35PPC 21.7-33.0 1.15 35*35*20 R260/WR34 FBP/FBM/FBE Al/Cu
VT320WEB25X25PPC 26.3-40.0 1.15 25*25*10 R320/WR28 FBP/FBM/FBE Al/Cu
VT320WHB30X30PPC 26.3-40.0 1.15 30*30*15 R320/WR28 FBP/FBM/FBE Al/Cu
VT400WEB25X25PPC 32.9-50.1 1.2 25*25*10 R400/WR22 FUGP Cu
VT400WHB20X20PPC 32.9-50.1 1.2 20*20*10 R400/WR22 FUGP Cu
VT500WEB25X25PPC 39.2-59.6 1.2 25*25*10 R500/WR19 FUGP Cu
VT500WHB25X25PPC 39.2-59.6 1.2 25*25*10 R500/WR19 FUGP Cu
VT620WEB20X20PPC 49.8-75.8 1.2 20*20*10 R620/WR15 FUGP Cu
VT620WHB25X25PPC 49.8-75.8 1.2 25*25*10 R620/WR15 FUGP Cu
VT740WEB20X20PPC 60.5-91.9 1.2 20*20*10 R740/WR12 FUGP Cu
VT740WHB25X25PPC 60.5-91.9 1.2 25*25*10 R740/WR12 FUGP Cu
VT900WEB20X20PPC 73.8-100 1.2 20*20*10 R900/WR10 FUGP Cu
VT900WHB25X25PPC 73.8-100 1.2 25*25*10 R900/WR10 FUGP Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** Legs (A,B) available in other sizes. Consult sales engineer for more information.
[Ordering Information]
