Straight Waveguide - VT260WAL50PPC
WR34 Straight Waveguide
MODEL NO VT260WAL50PPC
FREQ RANGE (GHz) 21.7-33.0
VSWR Max 1.05
LENGTH (mm) 50
WG TYPE (IEC/EIA) R260/WR34
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

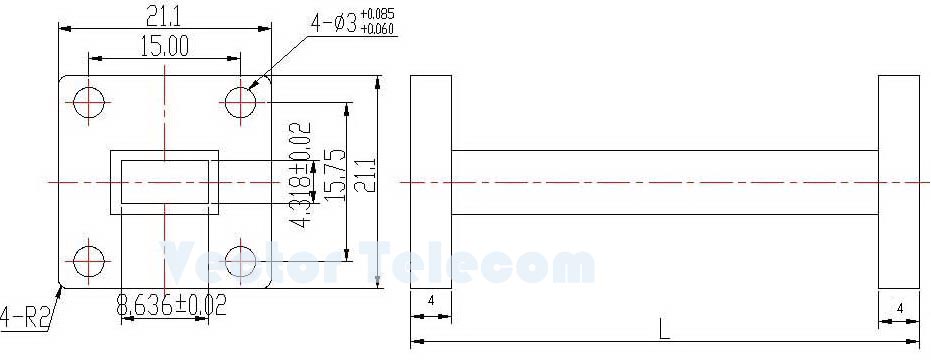

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Straight waveguide can be manufactured with different flange types. The available body materials include copper/brass, aluminum. We also supply other special configurations to meet customer's specific requirements.
