Waveguide Low Power Termination - VT14WL1.03PA
WR650 Waveguide Low Power Termination
| MODEL NO |
VT14WL1.03PA |
| FREQ RANGE (GHz) |
1.13-1.73 |
| VSWR Max |
1.03 |
| AVG POWER (W) |
25 |
| LENGTH (L) (mm) |
570 |
| WG TYPE (IEC/EIA) |
R14/WR650 |
| FLANGE TYPE |
FDP/FDM |
| MATERIAL |
Al |

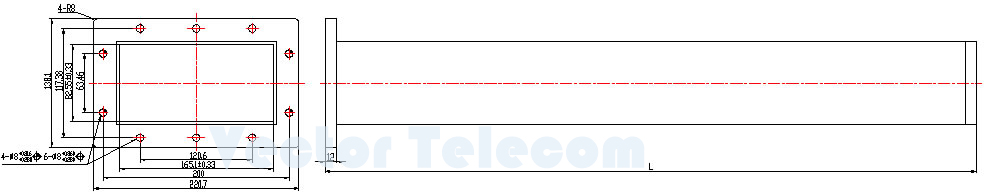

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |

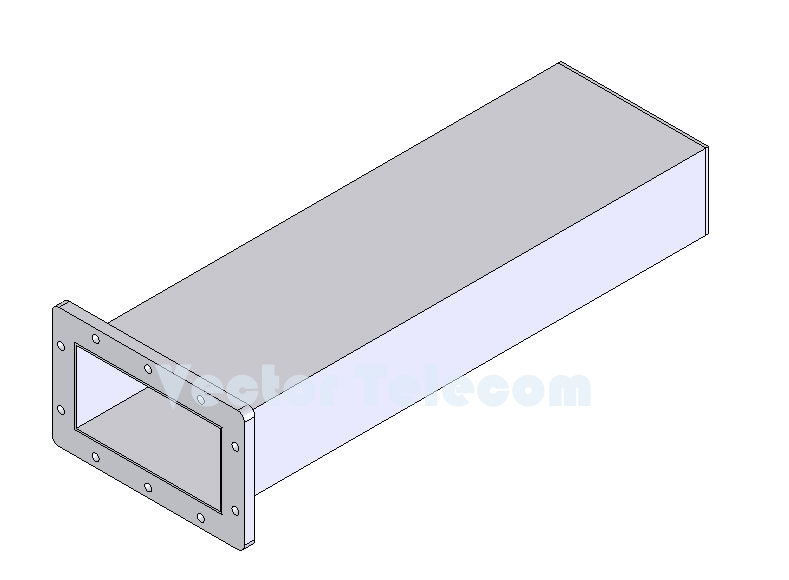

Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.03 over the full waveguide bandwidth.
| |
