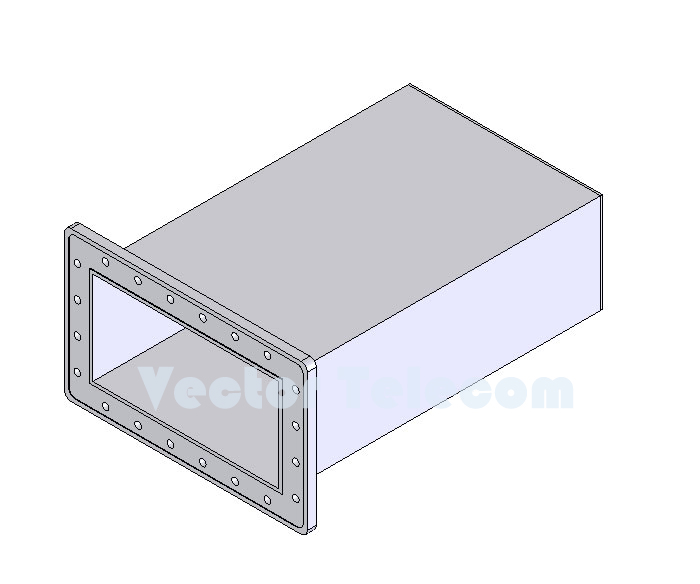

WG Low Power Termination - VT8WL1.05PAWR1150 Waveguide Low Power Termination
MODEL NO VT8WL1.05PA
FREQ RANGE (GHz) 0.64-0.98
VSWR Max 1.05
AVG POWER (W) 15
LENGTH (L) (mm) 1100
WG TYPE (IEC/EIA) R8/WR1150
FLANGE TYPE FDP/FDM
MATERIAL Al

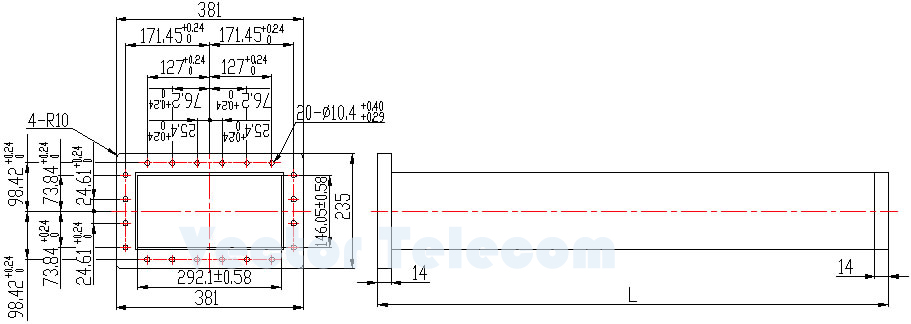

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.05 over the full waveguide bandwidth.
