Waveguide Three Channel Rotary Joint - VT84WRJLLIN
WR112 Waveguide Three Channel Rotary Joint
| MODEL NO |
VT84WRJLLIN |
| FREQ RANGE (GHz) |
6.57-9.99 |
| VSWR Max |
1.3 |
| INSERTION LOSS (dB) Max |
0.5 |
| ISOLATION (dB) Min |
50 |
| BANDWIDTH |
5% |
| FLANGE TYPE |
FBP/FBM/FBE |
| WAVEGUIDE TYPE |
WR112 |
| CONNECTOR |
N-F |
| MATERIAL |
Cu |

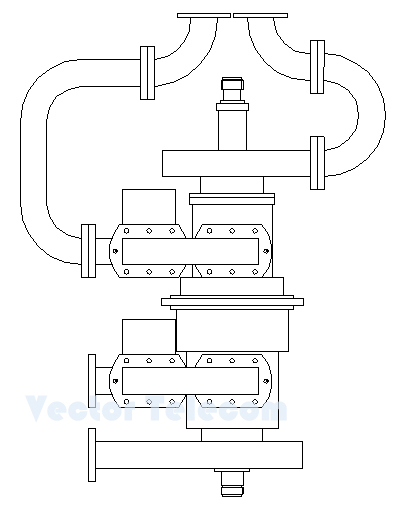

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Waveguide Three Channel Rotary Joints are typically used for measuring equipments in many system applications. The flange type and waveguide type can be custom made as per customer's specific requirements.
| |
