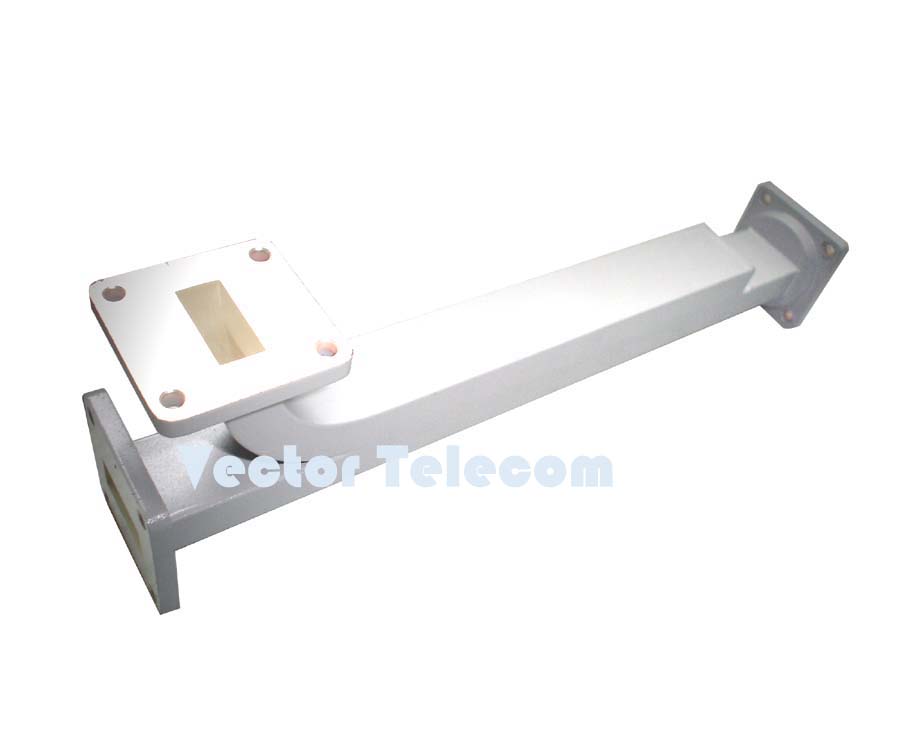

Broadwall Directional Coupler - 3 WG Ports - VT84WC30PPPC
WR112 Broadwall Directional Coupler
| MODEL NO |
VT84WC30PPPC |
| FREQ RANGE (GHz) |
6.57-9.99 |
| VSWR Max |
1.10(Main),1.15(Sec) |
| COUPLING*** (dB) |
3-40 |
| DIRECTIVITY (dB) Min |
20-38 |
| WG TYPE (IEC/EIA) |
R84/WR112 |
| FLANGE TYPE |
FBP/FBM/FBE |
| MATERIAL |
Al/Cu |

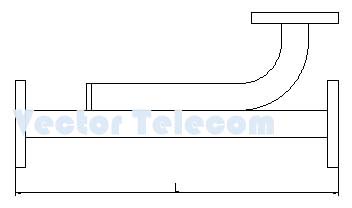

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Broadwall directional couplers are typically used for power sampling, frequency monitoring, especially in the test setups where power reflection measurements are required. The coupling level can be custom made from 3 dB to 40 dB. The high directivity is achieved via low VSWR built-in termination. The length of directional coupler is subject to change due to different coupling level. The flange type, connector type and sizes can be custom made as per customer's specific requirements.
| |
