Waveguide High Power Fixed Attenuator - VT70WHPFA55PPC500
WR137 Waveguide High Power Attenuator
| MODEL NO |
VT70WHPFA55PPC500 |
| FREQ RANGE (GHz) |
5.85-7.025 |
| VSWR Max |
1.20 |
| AVG POWER (W) |
500 |
| ATTENUATION*** (dB) |
55 |
| WG TYPE (IEC/EIA) |
R70/WR137 |
| FLANGE TYPE |
FDP/FDM |
| MATERIAL |
Al/Cu |

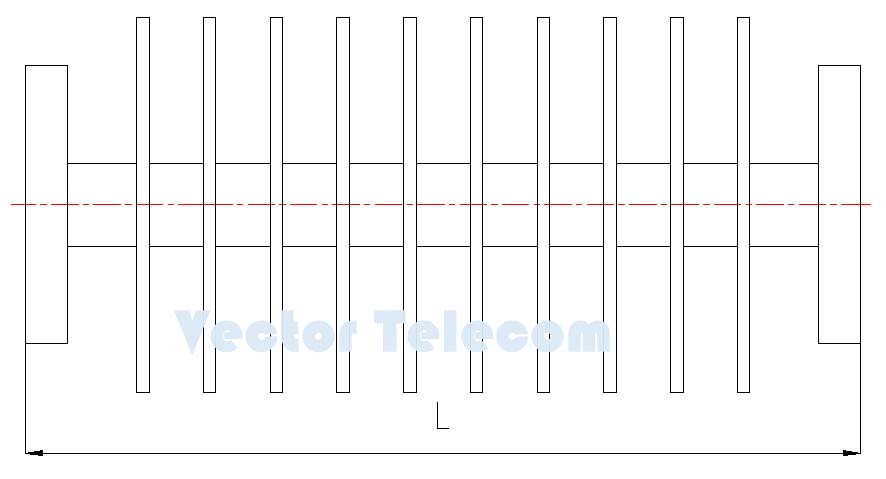

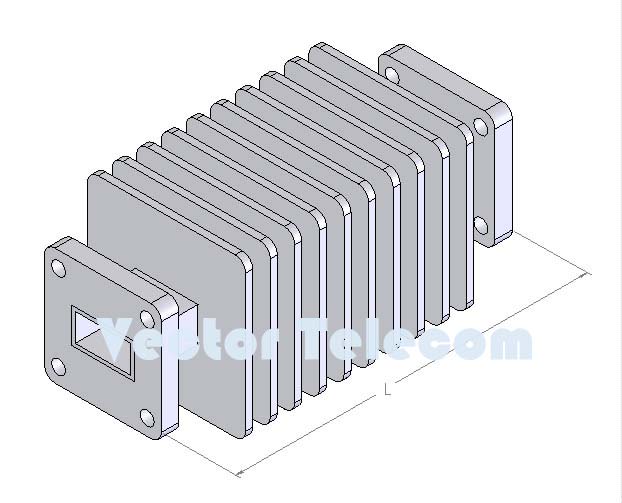

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Waveguide fixed attenuator is typically used in electrical level control, power matching and microwave measuring systems.
| |
