Waveguide Fixed Attenuator - VT70WFA10PPC
WR137 Waveguide Fixed Attenuator
| MODEL NO |
VT70WFA10PPC |
| FREQ RANGE (GHz) |
5.38-8.17 |
| VSWR Max |
1.15 |
| AVG POWER (W) |
2 |
| ATTENUATION*** (dB) |
3/6/10/20/30 |
| WG TYPE (IEC/EIA) |
R70/WR137 |
| FLANGE TYPE |
FDP/FDM |
| MATERIAL |
Al/Cu |

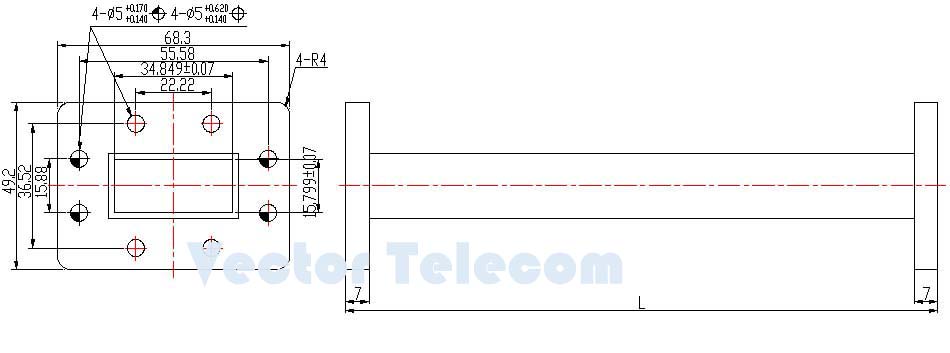

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Waveguide fixed attenuator is typically used in electrical level control, power matching and microwave measuring systems.
| |
