Waveguide Low Power Termination - VT6WL1.05PA

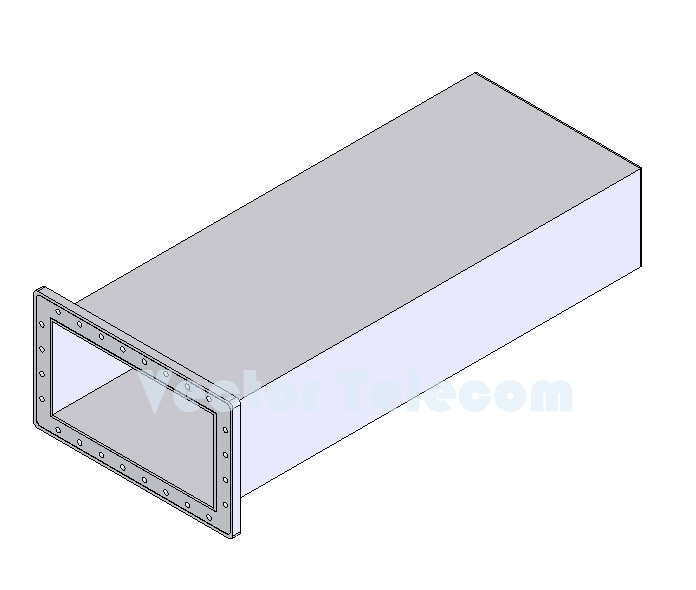

WR1500 Waveguide Low Power Termination
| MODEL NO |
VT6WL1.05PA |
| FREQ RANGE (GHz) |
0.49-0.75 |
| VSWR Max |
1.05 |
| AVG POWER (W) |
25 |
| LENGTH (L) (mm) |
1300 |
| WG TYPE (IEC/EIA) |
R6/WR1500 |
| FLANGE TYPE |
FDP/FDM |
| MATERIAL |
Al |

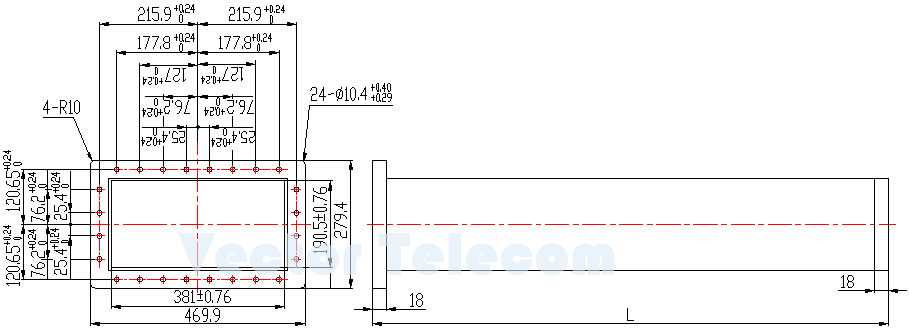

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.05 over the full waveguide bandwidth.
| |
