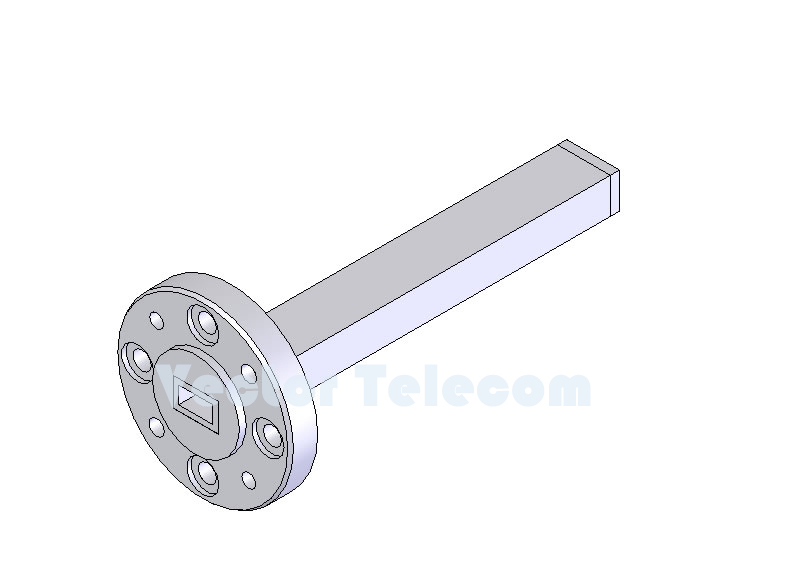

Waveguide Low Power Termination - VT620WL1.15PC
WR14 Waveguide Low Power Termination
| MODEL NO |
VT620WL1.15PC |
| FREQ RANGE (GHz) |
49.8-75.8 |
| VSWR Max |
1.15 |
| AVG POWER (W) |
0.5 |
| LENGTH (L) (mm) |
38 |
| WG TYPE (IEC/EIA) |
R620/WR14 |
| FLANGE TYPE |
FUGP |
| MATERIAL |
Cu |

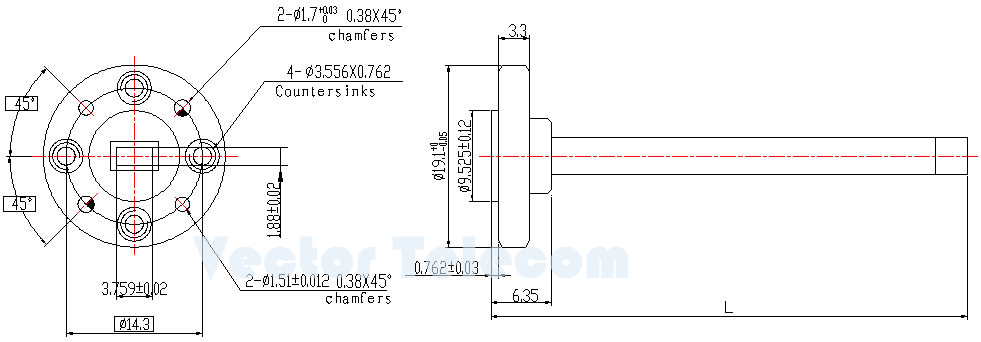

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.15 over the full waveguide bandwidth.
| |
