Waveguide Dual-Channel Rotary Joint - VT32WRJUUB
WR284 Waveguide Dual-Channel Rotary Joint
| MODEL NO |
VT32WRJUUB |
| FREQ RANGE (GHz) |
2.60-3.95 |
| VSWR Max |
1.3 |
| INSERTION LOSS (dB) Max |
0.5 |
| ISOLATION (dB) Min |
50 |
| BANDWIDTH |
5% |
| FLANGE TYPE |
FDP/FDM |
| WAVEGUIDE TYPE |
WR284 |
| MATERIAL |
Al |

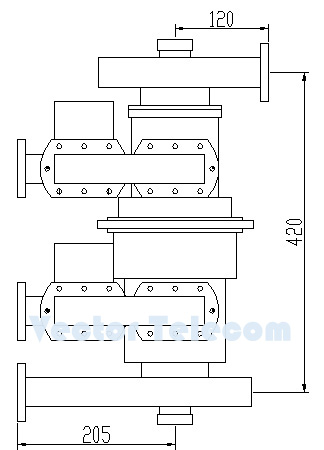

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Waveguide Dual-Channel Rotary Joints are typically used for measuring equipments in many system applications. The flange type and waveguide type can be custom made as per customer's specific requirements.
| |
