WG to Coaxial Adapter - Right Angle - VT32WCANKPAWR284 Waveguide to Coaxial Adapter
MODEL NO VT32WCANKPA In Stock!
FREQ RANGE (GHz) 2.60-3.95
VSWR Max 1.25
FLANGE TYPE FDP/FDM
CONNECTOR Type N, SMA, TNC
MATERIAL Al/Cu
WG TYPE (IEC/EIA) R32/WR284
AVG POWER (W) 100

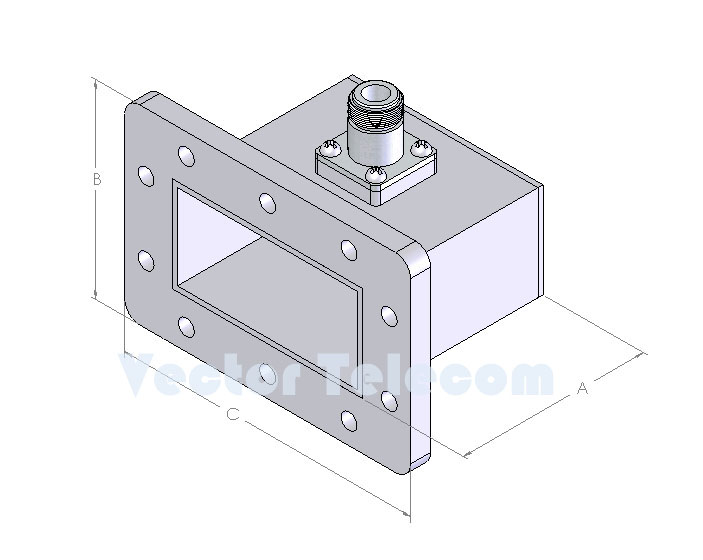

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The adapters are ideal choices where the waveguide to coaxial transitions are required in microwave measurement, equipments, systems and engineerings.WCA - Waveguide to Coaxial Adapter. N - Connector type is N type. The flange type, connector and length can be custom made as per customer's specific requirements.
