3dB Waveguide Combiner/Divider - VT320WSUC3

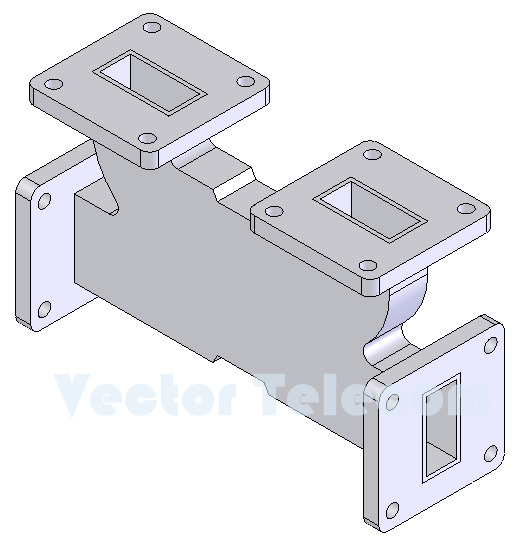

WR28 3dB Waveguide Combiner and Divider
| MODEL NO |
VT320WSUC3 |
| FREQ RANGE (GHz) |
26.5-40.0 |
| VSWR Max |
1.3 |
| ISOLATION (dB) Min |
20 |
| COUPLING LEVEL (dB) |
3 |
| OPERATION TEMP (°C) |
-40~70 |
| FLANGE TYPE |
FBP/FBM/FBE |
| WAVEGUIDE TYPE |
WR28 |
| MATERIAL |
Al/Cu |

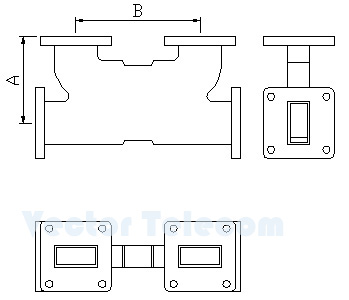

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
3dB Waveguide Combiners/Dividers are typically used for power distribution or power combination. It features small volume, the standard coupling level is 3 dB, the phase difference is 90° at distribution holes. The flange type and sizes can be custom made as per customer's specific requirements.
| |
