Waveguide High Power Fixed Attenuator - VT320WHPFA10PPC20
WR28 Waveguide High Power Attenuator
| MODEL NO |
VT320WHPFA10PPC20 |
| FREQ RANGE (GHz) |
26.3-40.0 |
| VSWR Max |
1.25 |
| AVG POWER (W) |
20 |
| ATTENUATION*** (dB) |
10 |
| WG TYPE (IEC/EIA) |
R320/WR28 |
| FLANGE TYPE |
FBP/FBM/FBE |
| MATERIAL |
Al/Cu |

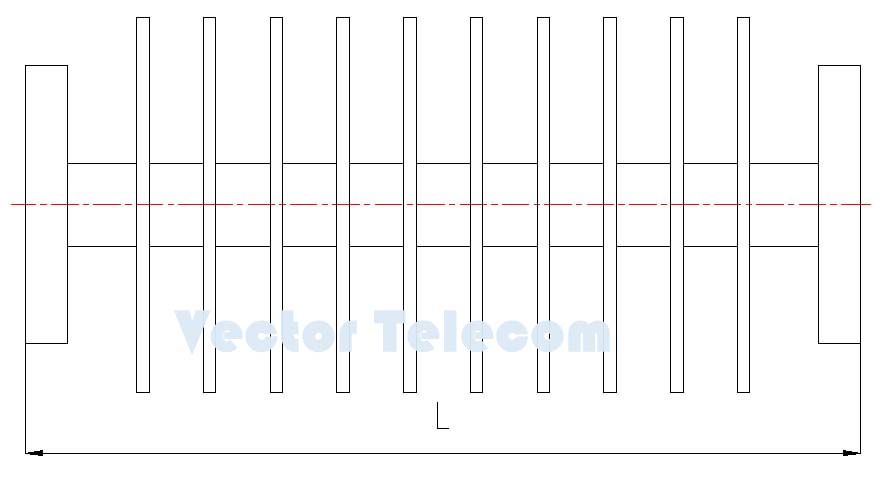

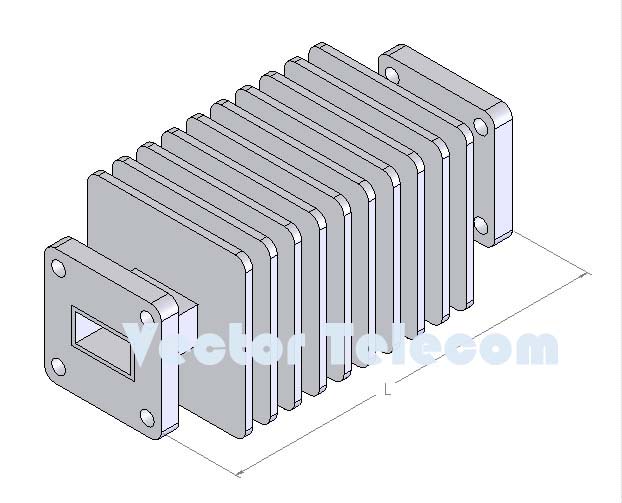

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Waveguide fixed attenuator is typically used in electrical level control, power matching and microwave measuring systems.
| |
