Straight Waveguide - VT26WAL300PPA
WR340 Straight Waveguide
MODEL NO VT26WAL300PPA
FREQ RANGE (GHz) 2.17-3.30
VSWR Max 1.05
LENGTH (mm) 300
WG TYPE (IEC/EIA) R26/WR340
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

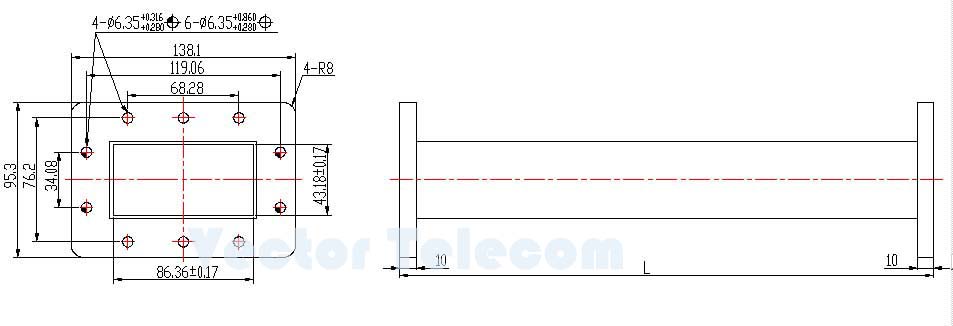

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Straight waveguide can be manufactured with different flange types. The available body materials include copper/brass, aluminum. We also supply other special configurations to meet customer's specific requirements.
