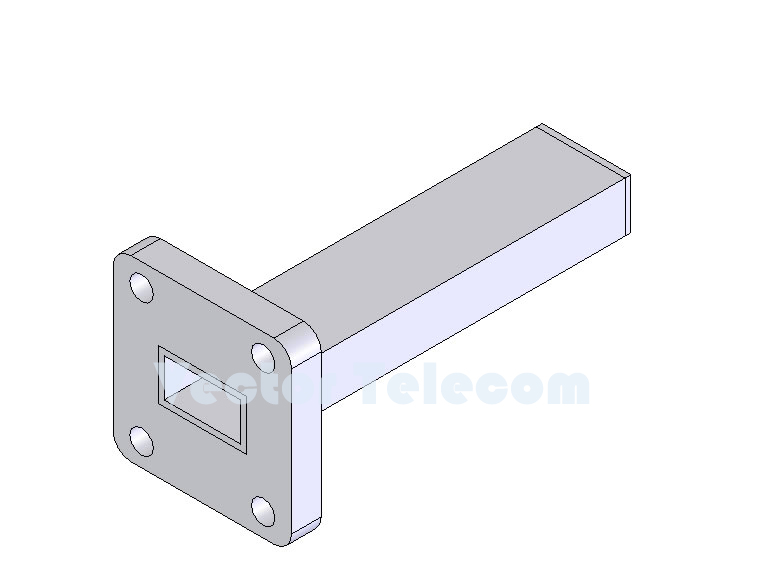

WG Low Power Termination - VT180WL1.03PCWR51 Waveguide Low Power Termination
MODEL NO VT180WL1.03PC In Stock!
FREQ RANGE (GHz) 14.5-22.0
VSWR Max 1.03
AVG POWER (W) 2
LENGTH (L) (mm) 75
WG TYPE (IEC/EIA) R180/WR51
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

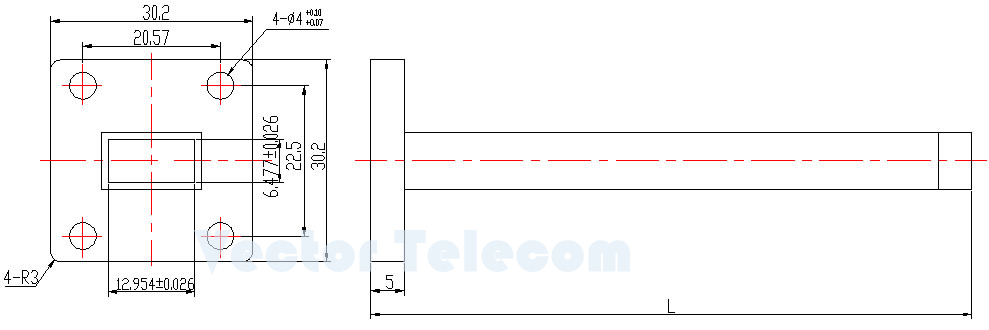

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.03 over the full waveguide bandwidth.
