Waveguide Single Channel Rotary Joint - VT140WRJIPPC
WR62 Waveguide Single Channel Rotary Joint
| MODEL NO |
VT140WRJIPPC |
| FREQ RANGE (GHz) |
11.9-18.0 |
| OPERATING BANDWIDTH (MHz) |
1000 |
| VSWR Max |
1.3 |
| VSWR WOW |
0.05 |
| IL (dB) Max |
0.4 |
| IL WOW (dB) |
0.1 |
| WG TYPE (IEC/EIA) |
R140/WR62 |
| FLANGE TYPE |
FBP/FBM/FBE |
| MATERIAL |
Al/Cu |

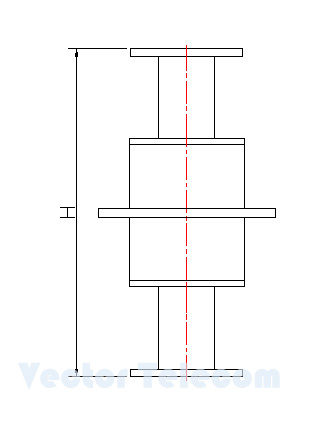

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |

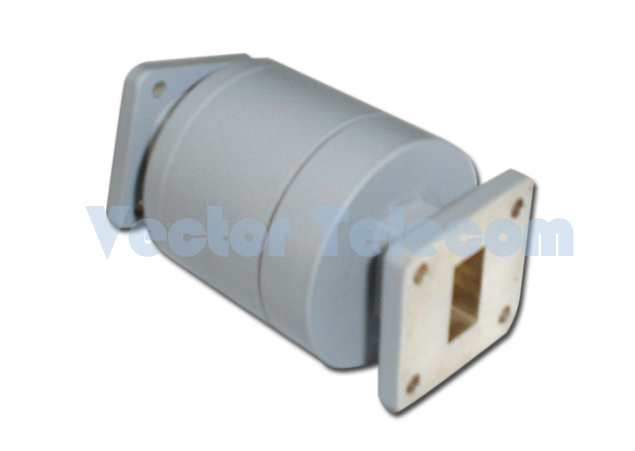

Single Channel Rotary Joints are typically used for measuring equipments for many system applications. This is U style. The flange type and waveguide type can be custom made as per customer's specific requirements.
| |
