Straight Waveguide - VT140WAL100PPC
WR62 Straight Waveguide
MODEL NO VT140WAL100PPC
FREQ RANGE (GHz) 11.9-18.0
VSWR Max 1.05
LENGTH (mm) 100
WG TYPE (IEC/EIA) R140/WR62
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

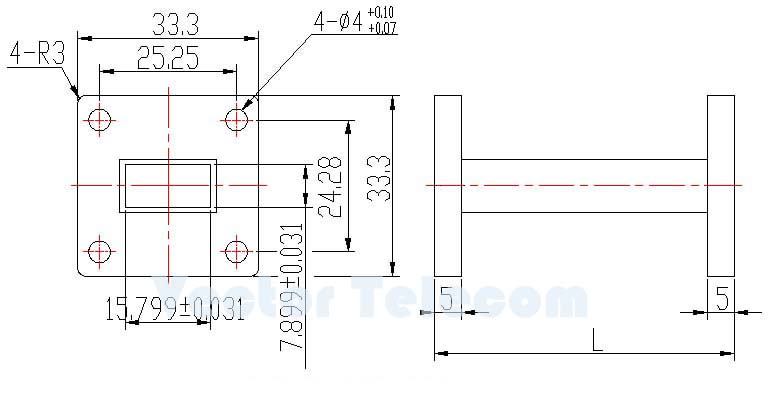

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Straight waveguide can be manufactured with different flange types. The available body materials include copper/brass, aluminum. We also supply other special configurations to meet customer's specific requirements.
