Waveguide Single Channel Rotary Joint - VT120WRJIPPC

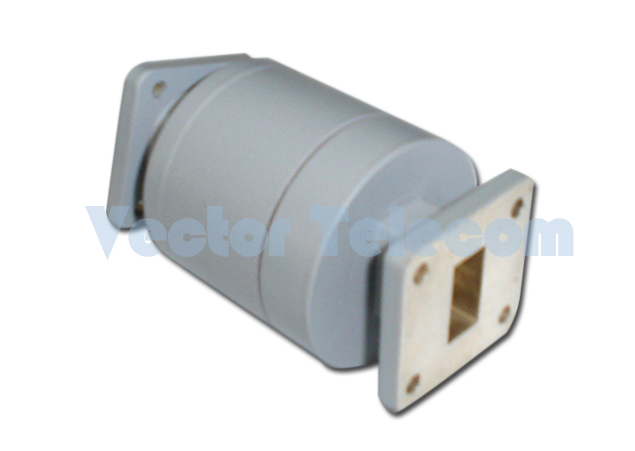

WR75 Waveguide Single Channel Rotary Joint
| MODEL NO |
VT120WRJIPPC |
| FREQ RANGE (GHz) |
9.84-15.0 |
| OPERATING BANDWIDTH (MHz) |
500 |
| VSWR Max |
1.25 |
| VSWR WOW |
0.05 |
| IL (dB) Max |
0.3 |
| IL WOW (dB) |
0.1 |
| WG TYPE (IEC/EIA) |
R120/WR75 |
| FLANGE TYPE |
FBP/FBM/FBE |
| MATERIAL |
Al/Cu |

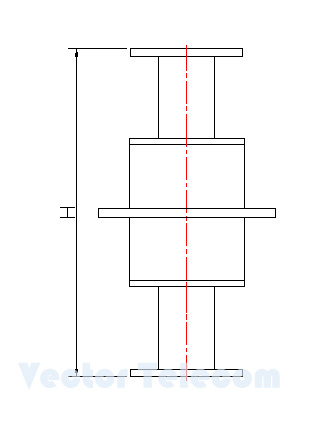

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
Single Channel Rotary Joints are typically used for measuring equipments for many system applications. This is U style. The flange type and waveguide type can be custom made as per customer's specific requirements.
| |
