Waveguide to Coaxial Adapter - Endlaunch

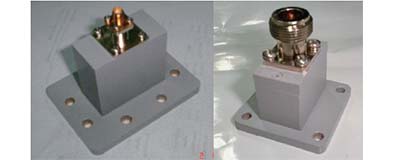

Vector Telecom manufactures End-launch Waveguide to Coaxial Adapters covering a full frequency range for Rectangular Waveguides, with multiple flange and coaxial connector types and configurations available. For more information feel free to call us and discuss your needs with one of our sales engineers.Waveguide to Coaxial Adapter - Endlaunch
Waveguide to Coaxial Adapter - Endlaunch
Download Waveguide to Coaxial Adapter - Endlaunch Catalogue »
Waveguide to Coaxial Adapter - Endlaunch Product Range

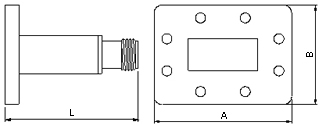

 MODEL NO  FREQ RANGE  VSWR  DIMENSIONS (L*B*A)  WG TYPE (IEC/EIA)  FLANGE TYPE  CONNECTOR  MATERIAL  PDF Datasheet
  (GHz) Max (mm)
VT3WECANKPA 0.32-0.49 1.25 R3/WR2300 FDP/FDM N
VT4WECANKPA 0.35-0.53 1.25 R4/WR2100 FDP/FDM N
VT5WECANKPA 0.41-0.62 1.25 R5/WR1800 FDP/FDM N
VT6WECANKPA 0.49-0.75 1.25 R6/WR1500 FDP/FDM N
VT8WECANKPA 0.64-0.98 1.25 R8/WR1150 FDP/FDM N
VT9WECANKPA 0.75-1.15 1.25 R9/WR975 FDP/FDM N
VT12WECANKPA 0.96-1.46 1.25 R12/WR770 FDP/FDM N
VT14WECANKPA 1.13-1.73 1.25 R14/WR650 FDP/FDM N
VT18WECANKPA 1.45-2.20 1.25 R18/WR510 FDP/FDM N
VT22WECANKPA 1.72-2.61 1.25 R22/WR430 FDP/FDM N Al/Cu
VT26WECANKPA 2.17-3.30 1.25 R26/WR340 FDP/FDM N Al/Cu
VT32WECANKPA 2.60-3.95 1.25 R32/WR284 FDP/FDM N Al/Cu
VT40WECANKPA 3.22-4.90 1.25 R40/WR229 FDP/FDM N Al/Cu
VT48WECANKPA 3.94-5.99 1.25 R48/WR187 FDP/FDM N Al/Cu
VT48WECASKPA 3.94-5.99 1.25 R48/WR187 FDP/FDM SMA Al/Cu
VT58WECANKPA 4.64-7.05 1.25 R58/WR159 FDP/FDM N Al/Cu
VT58WECASKPA 4.64-7.05 1.25 R58/WR159 FDP/FDM SMA Al/Cu
VT70WECANKPC 5.38-8.17 1.25 R70/WR137 FDP/FDM N Al/Cu
VT70WECASKPC 5.38-8.17 1.25 R70/WR137 FDP/FDM SMA Al/Cu
VT84WECANKPC 6.57-9.99 1.25 R84/WR112 FBP/FBM/FBE N Al/Cu
VT84WECASKPC 6.57-9.99 1.25 R84/WR112 FBP/FBM/FBE SMA Al/Cu
VT100WECANKPC 8.20-12.40 1.25 R100/WR90 FBP/FBM/FBE N Al/Cu
VT100WECASKPC 8.20-12.40 1.25 R100/WR90 FBP/FBM/FBE SMA Al/Cu
VT120WECANKPC 9.84-15.0 1.25 R120/WR75 FBP/FBM/FBE N Al/Cu
VT120WECASKPC 9.84-15.0 1.25 R120/WR75 FBP/FBM/FBE SMA Al/Cu
VT140WECANKPC 11.9-18.0 1.25 R140/WR62 FBP/FBM/FBE N Al/Cu
VT140WECASKPC 11.9-18.0 1.25 R140/WR62 FBP/FBM/FBE SMA Al/Cu
VT180WECASKPC 14.5-22.0 1.25 R180/WR51 FBP/FBM/FBE SMA Al/Cu
VT220WECASKPC 17.6-26.0 1.25 R220/WR42 FBP/FBM/FBE SMA Al/Cu
VT220WECA2.92KPC 17.6-26.7 1.25 R220/WR42 FBP/FBM/FBE 2.92mm Al/Cu
VT220WECA2.4KPC 17.6-26.7 1.25 R220/WR42 FBP/FBM/FBE 2.4mm Al/Cu
VT260WECA2.92KPC 21.7-33.0 1.25 R260/WR34 FBP/FBM/FBE 2.92mm Al/Cu
VT260WECA2.4KPC 21.7-33.0 1.25 R260/WR34 FBP/FBM/FBE 2.4mm Al/Cu
VT320WECA2.92KPC 26.5-40.0 1.25 R320/WR28 FBP/FBM/FBE 2.92mm Al/Cu
VT320WECA2.4KPC 26.5-40.0 1.25 R320/WR28 FBP/FBM/FBE 2.4mm Al/Cu
VT400WECA2.4KPC 33.0-50.0 1.5 R400/WR22 FUGP 2.4mm Cu
VT500WECA2.4KPC 40.0-50.0 2 R500/WR19 FUGP 2.4mm Cu
VT500WECA1.85KPC 40.0-50.0 2 R500/WR19 FUGP 1.85mm Cu
VT620WECA1.85KPC 55.0-65.0 2 R620/WR15 FUGP 1.85mm Cu
VT740WECA1.0KPC 66.0-86.0 2 R740/WR12 FUGP 1.0mm Cu
VT900WECA1.0KPC 90.0-100.0 2 R900/WR10 FUGP 1.0mm Cu
VT260WECASKPC 21.7-33.0 1.5 26.1*21*21 R260/WR34 FBP/FBM/FBE SMA Al/Cu
VT320WECASKPC 26.3-40.0 1.5 25.9*19*19 R320/WR28 FBP/FBM/FBE SMA Al/Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.

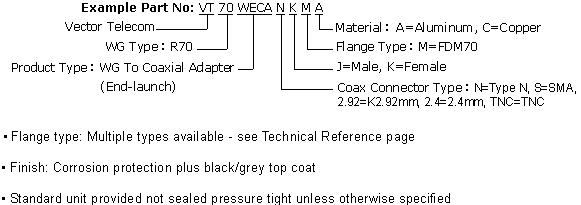

[Ordering Information]
