E-Plane Tee
Vector Telecom manufactures a wide variety of E-Plane Tees. The junction of the auxiliary arm is made on the broad wall of the main waveguide. E-Plane Tee
E-Plane Tee
Download E-Plane Tee Catalogue »
E-Plane Tee Product Range
VT3WET 0.32-0.49 R3/WR2300 FDP/FDM Al
VT4WET 0.35-0.53 R4/WR2100 FDP/FDM Al
VT5WET 0.41-0.62 R5/WR1800 FDP/FDM Al
VT6WET 0.49-0.75 R6/WR1500 FDP/FDM Al
VT8WET 0.64-0.98 R8/WR1150 FDP/FDM Al
VT9WET 0.77-1.14 R9/WR975 FDP/FDM Al
VT12WET 0.96-1.46 R14/WR770 FDP/FDM Al
VT14WET 1.14-1.72 R14/WR650 FDP/FDM Al
VT18WET 1.45-2.20 R18/WR510 FDP/FDM Al
VT22WET 1.72-2.60 R22/WR430 FDP/FDM Al
VT26WET 2.17-3.30 R26/WR340 FDP/FDM Al/Cu
VT32WET 2.60-3.95 R32/WR284 FDP/FDM Al/Cu
VT40WET 3.30-4.90 R40/WR229 FDP/FDM Al/Cu
VT48WET 3.95-5.85 R48/WR187 FDP/FDM Al/Cu
VT58WET 4.90-7.05 R58/WR159 FDP/FDM Al/Cu
VT70WET 5.85-8.20 R70/WR137 FDP/FDM Al/Cu
VT84WET 2.60-3.95 R84/WR112 FBP/FBM/FBE Al/Cu
VT100WET 8.20-12.4 R100/WR90 FBP/FBM/FBE Al/Cu
VT120WET 10.0-15.0 R120/WR75 FBP/FBM/FBE Al/Cu
VT140WET 12.4-18.0 R140/WR62 FBP/FBM/FBE Al/Cu
VT180WET 15.0-22.0 R180/WR51 FBP/FBM/FBE Al/Cu
VT220WET 18.0-26.5 R220/WR42 FBP/FBM/FBE Al/Cu
VT260WET 22.0-33.0 R260/WR34 FBP/FBM/FBE Al/Cu
VT320WET 26.3-40.0 R320/WR28 FBP/FBM/FBE Al/Cu
VT400WET 32.9-60.1 R400/WR22 FUGP Cu
VT500WET 39.2-59.6 R500/WR19 FUGP Cu
VT620WET 49.8-75.8 R620/WR15 FUGP Cu
VT740WET 60.5-91.9 R740/WR12 FUGP Cu
VT900WET 73.8-112 R900/WR10 FUGP Cu

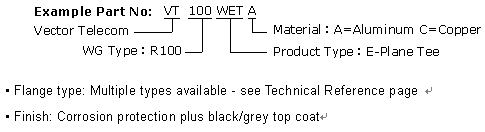

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
